The AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod is a top-notch nickel-based alloy filler metal crafted for those critical welding situations where you need exceptional strength, corrosion resistance, and thermal stability. This alloy is specially designed for joining and overlay welding of nickel-chromium-cobalt-molybdenum alloys, particularly in high-temperature and high-pressure settings. It stands out with its remarkable resistance to oxidation, carburization, and stress cracking, even in the toughest service conditions. ERNiCrCoMo-1 guarantees superior weld integrity in petrochemical plants, furnace components, gas turbine parts, and aerospace assemblies, making it the go-to choice for industries that require long-lasting reliability and mechanical durability.
AWS ERNiCrCoMo-1 features a well-balanced mix of nickel, chromium, cobalt, molybdenum, iron, and trace elements that enhance both weld strength and oxidation resistance. This alloy boasts excellent tensile strength, toughness, and stability at high temperatures. Chromium plays a key role in providing corrosion and oxidation resistance, while molybdenum enhances creep strength and stress-rupture properties. Cobalt contributes to high-temperature hardness and structural stability. The filler metal is known for its outstanding weldability, low tendency to crack, and strong metallurgical bonding, making it ideal for precision welding in demanding industrial applications.
| Classification | AWS A5.14, ERNiCrCoMo-1 |

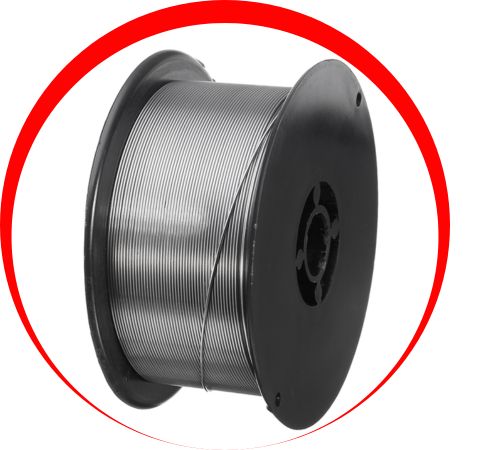

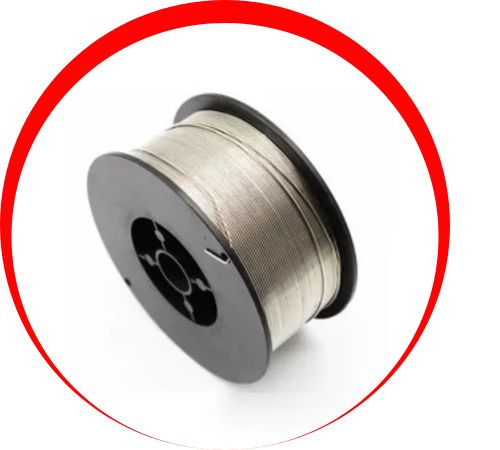

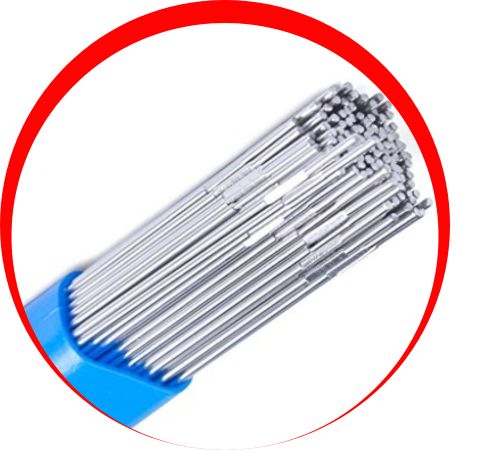

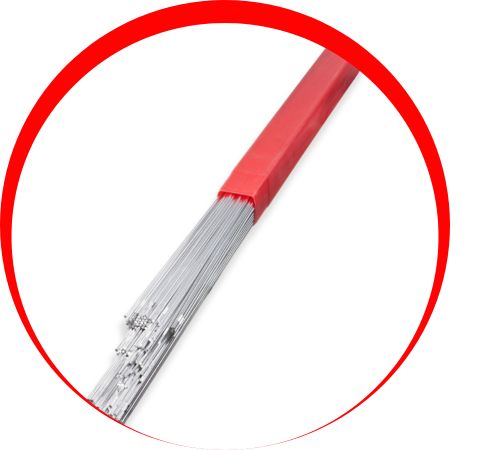

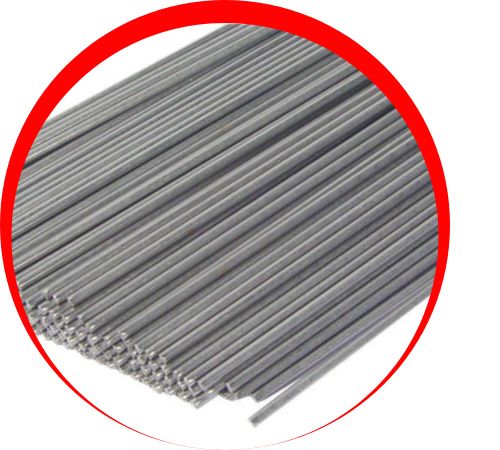

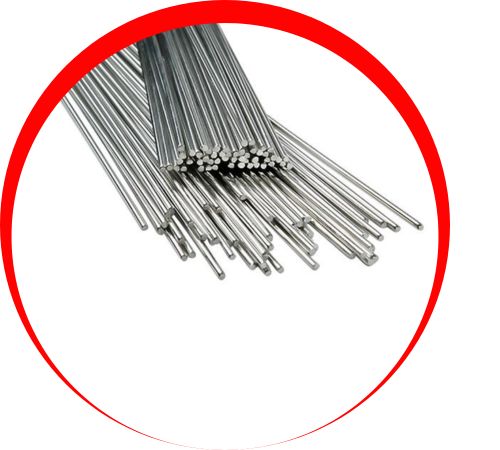

| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ERNiCrCoMo-1 MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Si | Cr | S | P | Ni | Fe | Cu | Al | Mo | Co | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05-0.15 | ≤1.0 | ≤1.0 | 20-24 | ≤0.015 | ≤0.03 | Rest | ≤3.0 | ≤0.5 | 0.8-1.5 | 8-10 | 10-15 | ≤0.6 |
| Tensile Strength MPa(ksi) | Yield Strength MPa(ksi) | Elongation % | |
|---|---|---|---|
| AWS requirement | 620(90) | Not specified | Not specified |
| Typical results as welded | 770(112) | 610(89) | 28 |
At Nasir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod in Manama, Bahrain, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Bahrain, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
The AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod is a go-to choice in industries that demand top-notch performance, especially in tough conditions like extreme heat, pressure, and corrosive environments. You’ll often find it being used for welding and repairing components in gas turbines, furnace equipment, jet engines, petrochemical processing units, refinery heaters, high-temperature vessels, and power generation systems. This alloy shines when it comes to joining nickel-based superalloys and tackling dissimilar metal welding with stainless steels and heat-resistant alloys. Thanks to its excellent metallurgical stability and corrosion resistance, it promises a long service life even in the most critical engineering settings.
