Home > Nitinol Shape Memory Sheet and Plate

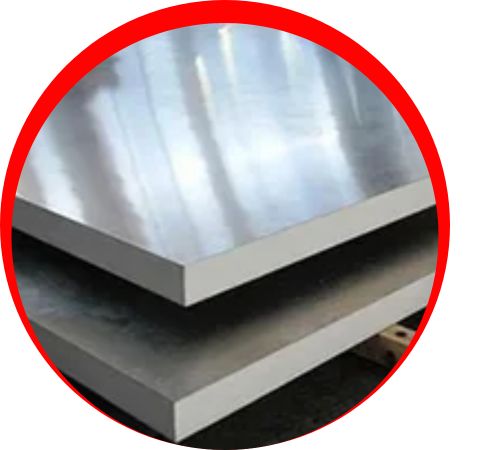

Nasir Nickel Alloys supplies Nitinol superelastic sheets and plates, a nickel-titanium alloy distinguished by its ability to undergo large deformations and instantly recover its original shape upon unloading, due to stress-induced martensitic transformation. These superelastic sheets offer excellent flexibility, durability, and corrosion resistance, making them ideal for biomedical, aerospace, and robotics applications. Manufactured to tight standards, they deliver reliable superelastic performance at or above room temperature, typically with Af (austenite finish) around 0 to 20°C.
Nitinol superelastic sheets and plates typically consist of about 55% nickel and 45% titanium, delivering tensile strengths ranging from 1000 to 1150 MPa, elongation greater than 10%, and a modulus of elasticity between 40-75 GPa. The superelastic grades have a loading plateau stress at 3% strain around 380 MPa, with permanent set (after 6% strain) below 0.3%. These properties enable reversible strains up to 8%, far exceeding conventional metals, and the alloy exhibits excellent fatigue resistance and biocompatibility, making it suitable for implants and precision actuators.
| Standards : | ASTM F2063 / ASME SF2063 |
| Material : | Nickel: 54.5-57 wt%, Balance: Ti |
| Nitinol Plate Sizes : | 0.004”-0.2” x W x L |
| Nitinol Sheet Thickness : | 0.003” (0.076mm) to 0.098” (2.5mm) |
| Nitinol Sheet Width : | up to 3.5” (90mm) with larger sizes upon request |
| Nitinol Sheet Length : | up to 20” (500mm) |
| Alloys : | Superelastic |
| Surface : | Natural Oxide, Pickled/Etched and Customer Specific Requirements |
| Thermomechanical Conditions : | As Cold-Worked, Straight Strain Annealed and Shape Set Annealed. |
| STANDARD | UNS |
| NiTi Alloys | N01555 |
At Nasir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic Sheet and Plates in Manama, Bahrain, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Bahrain, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Superelastic Nitinol sheets and plates are widely used in medical devices like stents, orthodontic wires, surgical tools, and guidewires, as well as actuators and adaptive components in robotics and aerospace where high elasticity and shape recovery are essential. Its corrosion resistance and unique mechanical behavior ensure long-lasting, safe, and highly functional performance in demanding environments, supporting innovations across high-tech fields.
| Grade | Ni | N+O | Fe | Co | C | Nb | Cr | Cu | H | Ti |
| Nitinol | 54.5 – 57.0 | 0.050 | 0.050 | 0.050 | 0.050 | 0.025 | 0.010 | 0.010 | 0.005 | Bal |
